ECO BROMOGRAPH

ECO BROMOGRAPH

Code: 3547

In Stock: 5


In assembly kit - suitable for screen printing up to 47x57 cm

- Occupies only 20x62 cm.
- Can hold frames up to 47x57cm
- Equipped with 4 standard neon lights.

Excl. Tax: €285.50 Incl. Tax: €339.75

* Required Fields

Excl. Tax: €285.50 Incl. Tax: €339.75
Qty:

Questions about the product?
Check out our answers to frequently asked questions

Download here all the instructions for the Eco bromograph >>


Tools esposed the screen printing - Bromograph Eco

The cheapest bromograph for screen printing frames on the market!

Space-saving: with vertical installation and operation, hangs on the wall.
It occupies only 20x62 cm.
It can contain screen printing up to 47x57 cm
Equipped with 4 standard neon lights.
To shorten the exposure times, cold light neon (6500∞K) or UV neon can be installed.
Ventilation openings prevent overheating.
Supplied without timer.

The bromograph is supplied in kit form and disassembled with assembly instructions.
It is possible to request assembly by CPL Fabbrika at the time of purchase.



THE SCREEN PRINTING EXPOSURE TIMES TABLE.
These times are only indicative. In relation to the different thickness of emulsion deposited on the frame, they can undergo variations.

NEON SCREEN PRINTING EMULSION TIME
Standard 55 threads/cm QLT 8 min
Standard 55 threads/cm TEXTIL HT 30 min
NEON UV 55 threads/cm QLT 4 min
NEON UV 55 threads/cm TEXTIL HT 14 min


ECO LINE
The ECO bromograph is part of the ECO Line, designed to allow even non-professional screen printers to carry out all stages of the screen printing process in a simple way, with a minimum investment and in a small space, obtaining high quality results.

The ECO Line is particularly suitable for non-professional screen printers, but also for graphic designers and artists who love the screen printing technique and wish to be self-sufficient in the stages of stringing, engraving and, of course, printing.

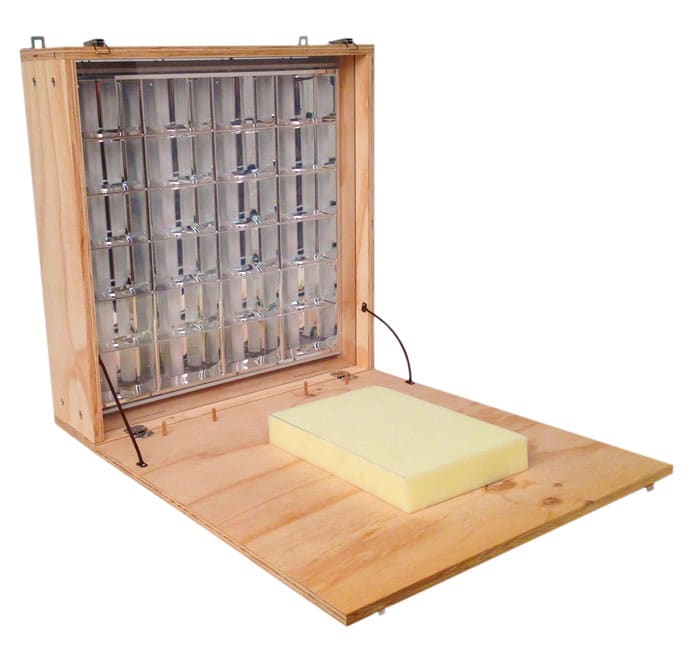

espositore per serigrafia

The ECO bromograph hangs on the wall and measures 20x62 cm closed and 82x62 cm open.
It can contain a screen printing up to 47x57 cm in size.

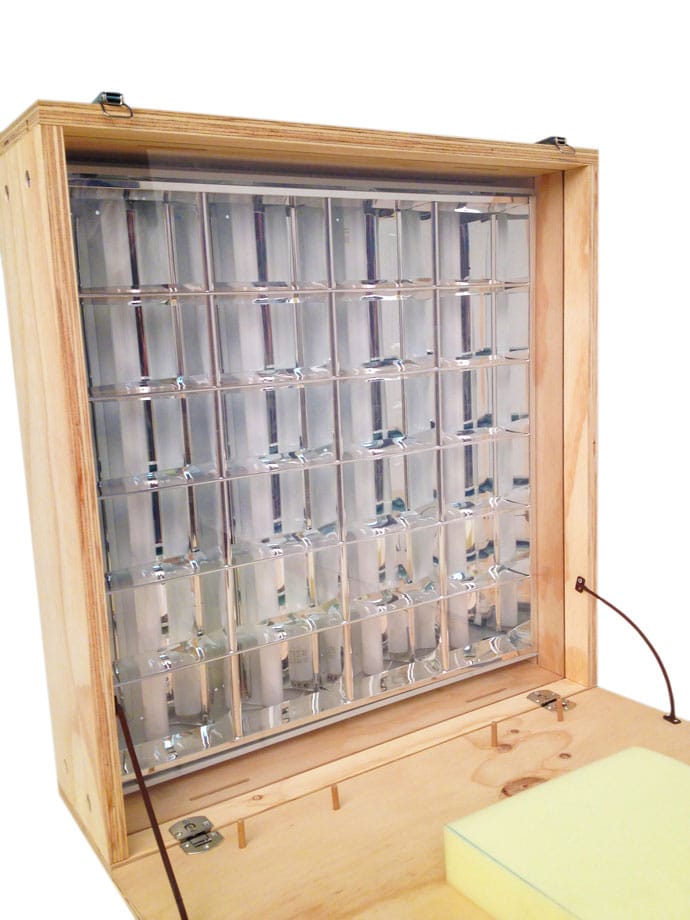

neon uv per serigrafia

The ECO bromograph is supplied with 4 standard neons.

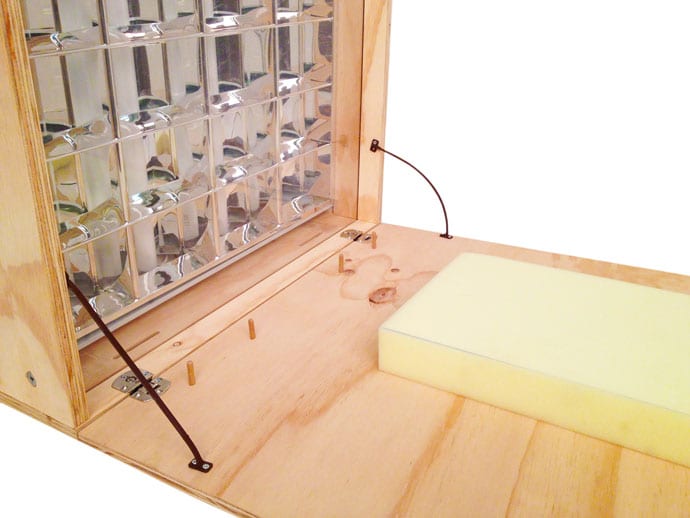

bromografo autocostruito

The ECO bromograph is equipped with a foam rubber presser to make the film adhere to the screen printing without the need for a pneumatic vacuum.

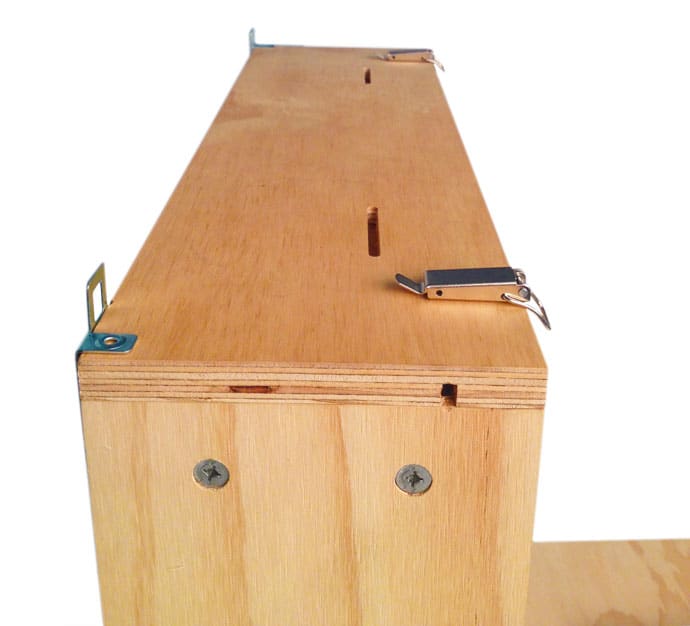

espositore per serigrafia autocostruito

The ECO bromograph is equipped with ventilation holes in the upper part of the case.

materiale serigrafia
